We develop and manufacture key components of the K2 main battle tank, including suspension systems, power systems, and hydraulic systems, and perform hull structure machining for export.
The suspension system enhances driving performance, stability, and ride comfort, while supplying core components required for execution such as hydraulic oil coolers and fuel supply and flow control components.
+Fuel Pump Assembly
+Main Cooler Assembly
+Main Hydraulic Pump
+ISU Cylinder Block Assembly
+Block Assembly
+Accelerator Pedal Assembly
+Hydraulic Pressure Distribution Manifold Assembly
+Drive Block Assembly
+Centrifugal Pump
+Water Separator
+Hull Structure Machining
+Hull Structure Shot Blasting & Painting
Fuel Pump Assembly
Supplies fuel to the engine using vehicle power and operates an auxiliary fuel pump when required.
Main Cooler Assembly
Cools heated hydraulic oil in the tanks using radiators and cooling fans

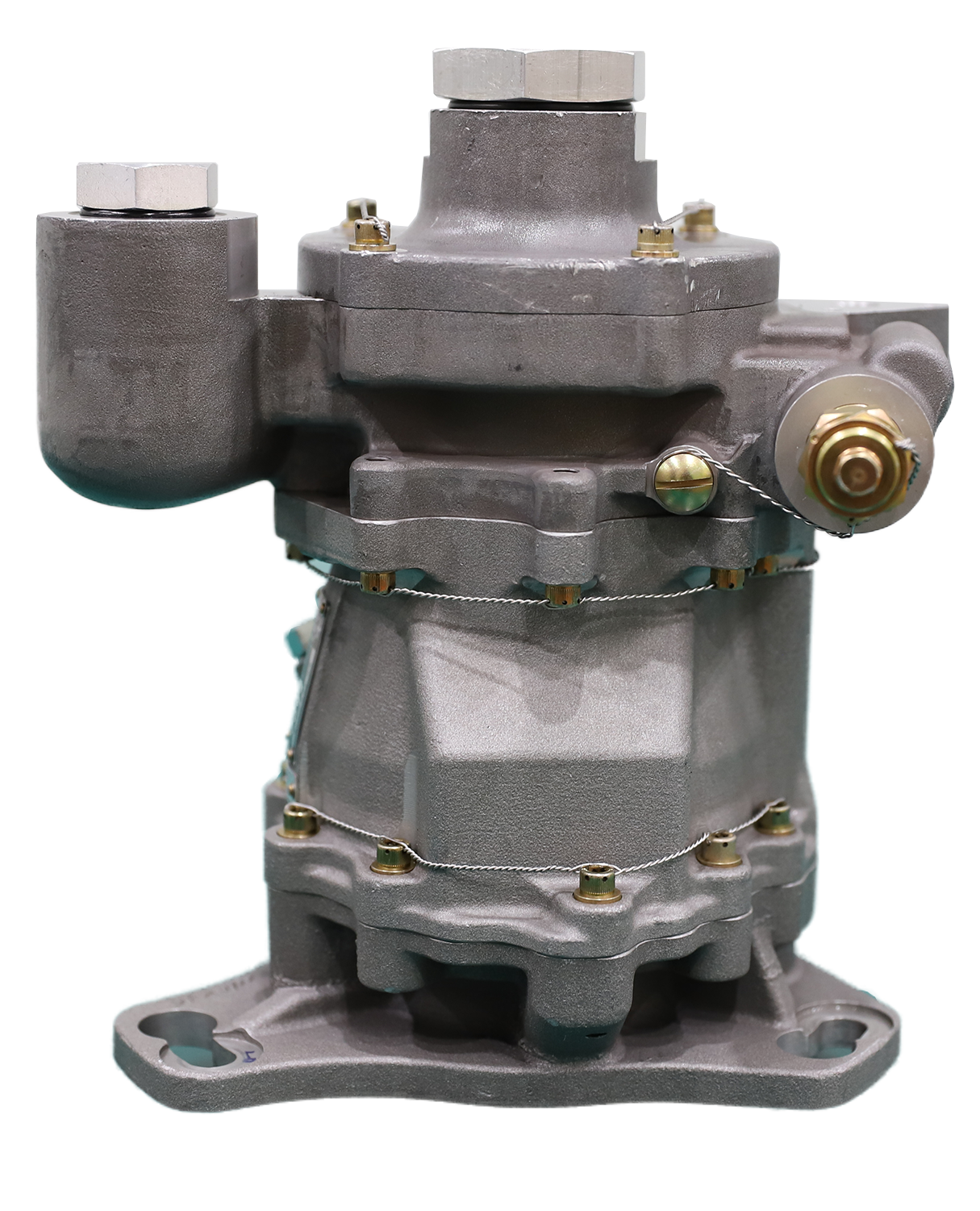

Main Hydraulic Pump
Generates hydraulic power to drive the track tensioning and hydropneumatic suspension systems, using actuator of the engine power pack.

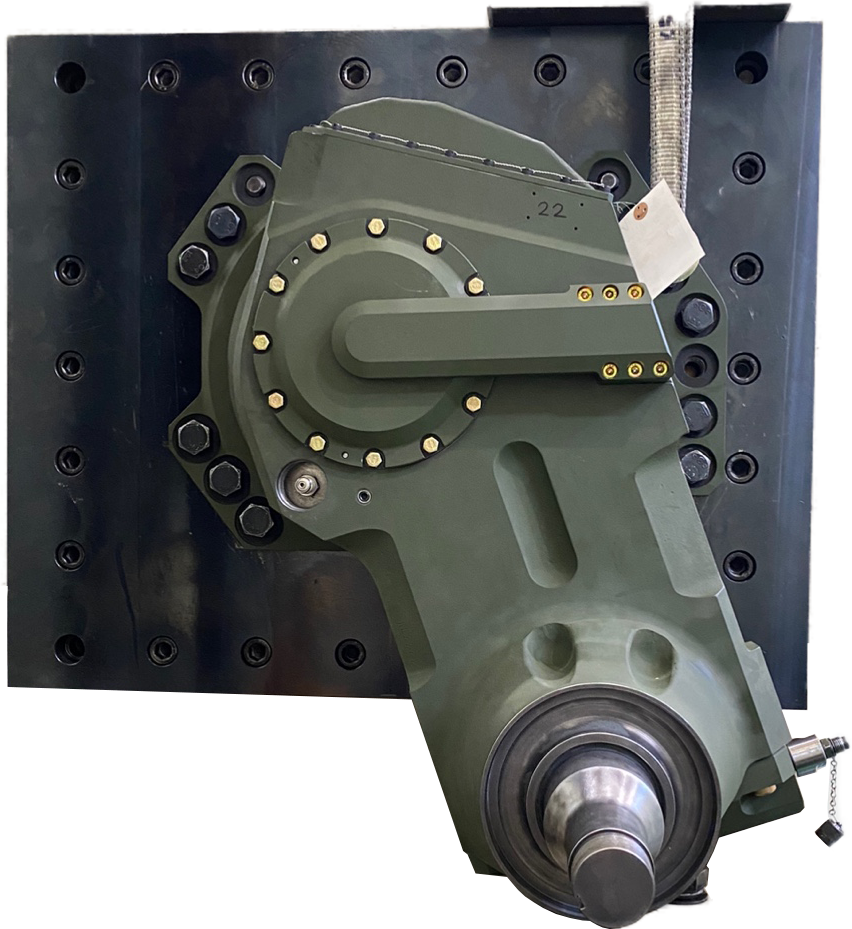

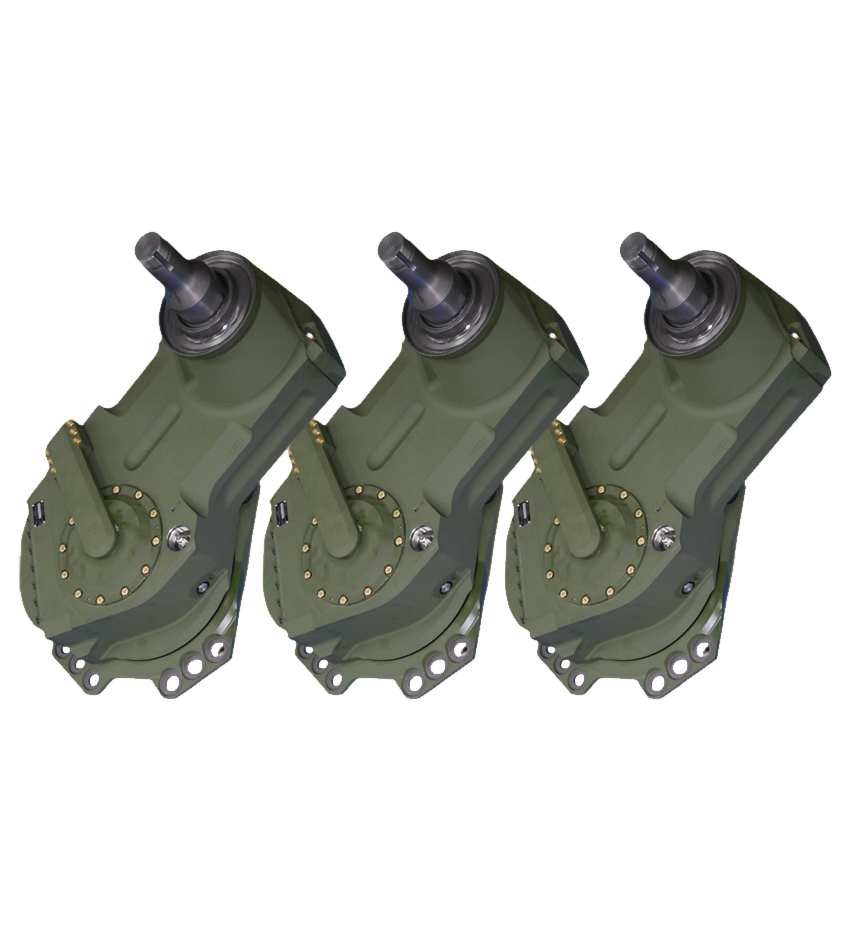

ISU Cylinder Block Assembly
Absorbs vibration/shock from road surfaces during driving and recoil forces during firing, and adjusts vehicle posture by controlling the amount of operating oil.
Block Assembly
Transfers operating hydraulic pressure by moving the control handle assembly of each mode according to the vehicle’s operating condition.
Accelerator Pedal Assembly
Adjusts output voltage according to the pedal angle and transmits the required voltage to the engine and other systems.
Hydraulic Pressure Distribution Manifold Assembly
Distributes hydraulic pressure and controls hydraulic flow for ISU operation.
Drive Block Assembly
Regulates oil flow and pressure supplied from the main hydraulic pump and delivers controlled pressure and flow to the main cooler assembly.
Centrifugal Pump
Provides engine compartment warm-up and crew compartment heating.
Water Separator
Removes moisture from fuel transferred from main and auxiliary fuel tanks to the fuel pump, detecting moisture levels via a control module and automatically discharging them.
Hull Structure Machining
Machines hull structures for export using Plano Miller.
Hull Structure Shot Blasting & Painting
Shot blasting and painting of hull structures for export.
